Sockel-1200
BezeichnungASRock H510M-H2/M.2 SEMerkmale- Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)- 4 Power Phase Design- Supports DDR4 3200 MHz- Intel® H470 Chipset- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1- Graphics Output Options: 2 HDMI- Realtek ALC897 7.1 CH HD Audio Codec- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)- 6 USB 3.2 Gen1 (4 Rear, 2 Front),- 6 USB 2.0 (2 Rear, 4 Front)- Realtek Gigabit LAN- Supports ASRock Auto Driver InstallerTechnische DatenUnique FeatureRock-Solid Durability- 4 Power PhaseEZ Update- ASRock Auto Driver InstallerCPU- Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)- Supports Intel® Turbo Boost Max 3.0 TechnologyChipset- Intel® H470Memory- Dual Channel DDR4 Memory Technology- 2 x DDR4 DIMM Slots- Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*- Supports ECC UDIMM memory modules (operate in non-ECC mode)- Max. capacity of system memory: 64GB**- Supports Intel® Extreme Memory Profile (XMP) 2.0- 15µ Gold Contact in DIMM Slots* 11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.BIOS- 128Mb AMI UEFI Legal BIOS with GUI supportGraphics- 2 x HDMIIntel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60HzIntel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.Graphics specifications may vary between CPU types.Audio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)LAN- Gigabit LAN 10/100/1000 Mb/s- Realtek 8111HSlotsIntel® 11th Gen & 10th Gen Processors:- 1 x PCIe 4.0 x16 Slot (PCIE1)*Intel® H470 Chipset:- 1 x PCIe 3.0 x1 Slot (PCIE2)*** Intel® 11th Gen Processors support PCIe 4.0 x16Intel® 10th Gen Processors support PCIe 3.0 x16** Supports NVMe SSD as boot disksStorageChipset:- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*- 4 x SATA3 6.0 Gb/s Connectors* Supports Intel® Optane™ TechnologySupports NVMe SSD as boot disksRAID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSB- 6 x USB 3.2 Gen1 (4 Rear, 2 Front)- 6 x USB 2.0 (2 Rear, 4 Front)* All USB ports support ESD ProtectionConnector- 1 x SPI TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x CPU Fan Connector (4-pin)*- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector- 1 x Front Panel Audio Connector- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)*CPU_FAN1 supports the fan power up to 1A (12W).** CHA_FAN1~2/WP support the fan power up to 2A (24W).CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.Rear Panel I/O- 1 x PS/2 Mouse/Keyboard Port- 2 x HDMI Ports- 2 x USB 2.0 Ports- 4 x USB 3.2 Gen1 Ports- 1 x RJ-45 LAN Port- HD Audio Jacks: Line in / Front Speaker / MicrophoneSoftware and UEFISoftware- ASRock Motherboard Utility (A-Tuning)UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Auto Driver Installer- ASRock Instant Flash*These utilities can be downloaded from ASRock Live Update & APP Shop.Accessories- 1 x User Manual- 1 x I/O Shield- 2 x SATA Data Cables- 1 x Screw for M.2 SocketForm Factor- Micro ATX Form Factor: 23.1 cm x 18.7 cmOS- Microsoft Windows® 10 64-bit / 11 64-bitCertifications- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

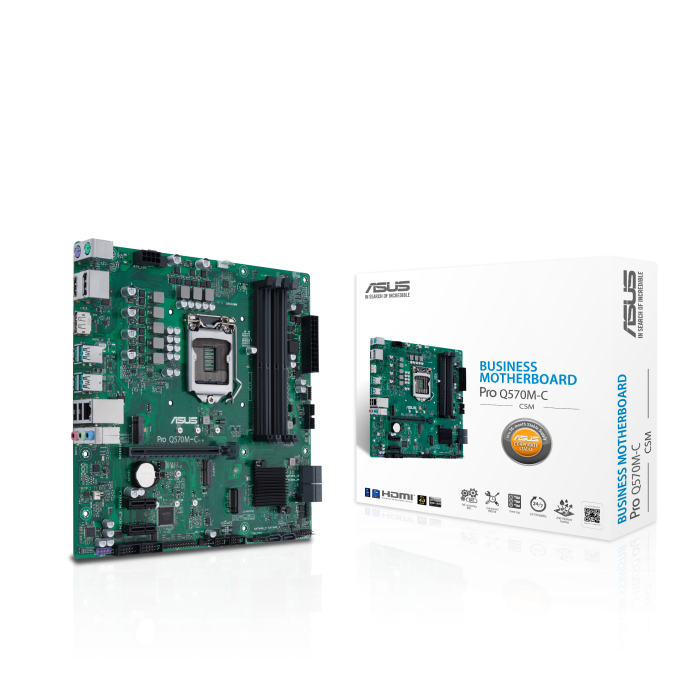

BezeichnungAsus Pro Q570M-C/CSM Micro-ATX Q570 BeschreibungBusiness-Mainboard mit Intel®-vPro-Unterstützung, verbesserter Sicherheit, Zuverlässigkeit und VerwaltungsfunktionalitätMerkmale- Intel®-LGA-1200-Sockel: Bereit für die Intel®-Core™-Prozessoren der 11. Generation- ASUS-exklusive Self-Recovery-BIOS-Technologie zur automatischen BIOS-Wiederherstellung aus einem verifizierten Backup.- Unterstützt einen SMBUS-Header, der mit einem DASH-LAN verbunden ist und eine Remote-IT-Verwaltung ermöglicht- ASUS-COM-Debug-Header für eine effizientere Fehlersuche- Ereignisprotokollierung zur Erfassung und Verwaltung detaillierter Systeminformationen- Innovative, feuchtigkeitsbeständige Beschichtung zum Schutz des Mainboards vor extremen Umgebungsbedingungen- Commercial BIOS Kit für schnellere und effizientere Anpassungen- ASUS Control Center Express(ACCE) zur Vereinfachung des IT-Endpunktmanagements- Ultraschnelle Konnektivität: PCIe® 4.0, Intel® 1Gbit/s-Ethernet und Front-Header für USB 3.2 Gen 1 Typ-CTechnische DatenModelPro Q570M-C/CSMCPUIntel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsMemoryMemory Channels:4DDR4 (Dual channel)Max Memory Size:128GBStorageSupports 2 x M.2 slots and 6 x SATA 6Gb/s portsUSBRear USB:Total 6 portsFront USB:Total 7 portsOperating SystemWindows 10 64bit
