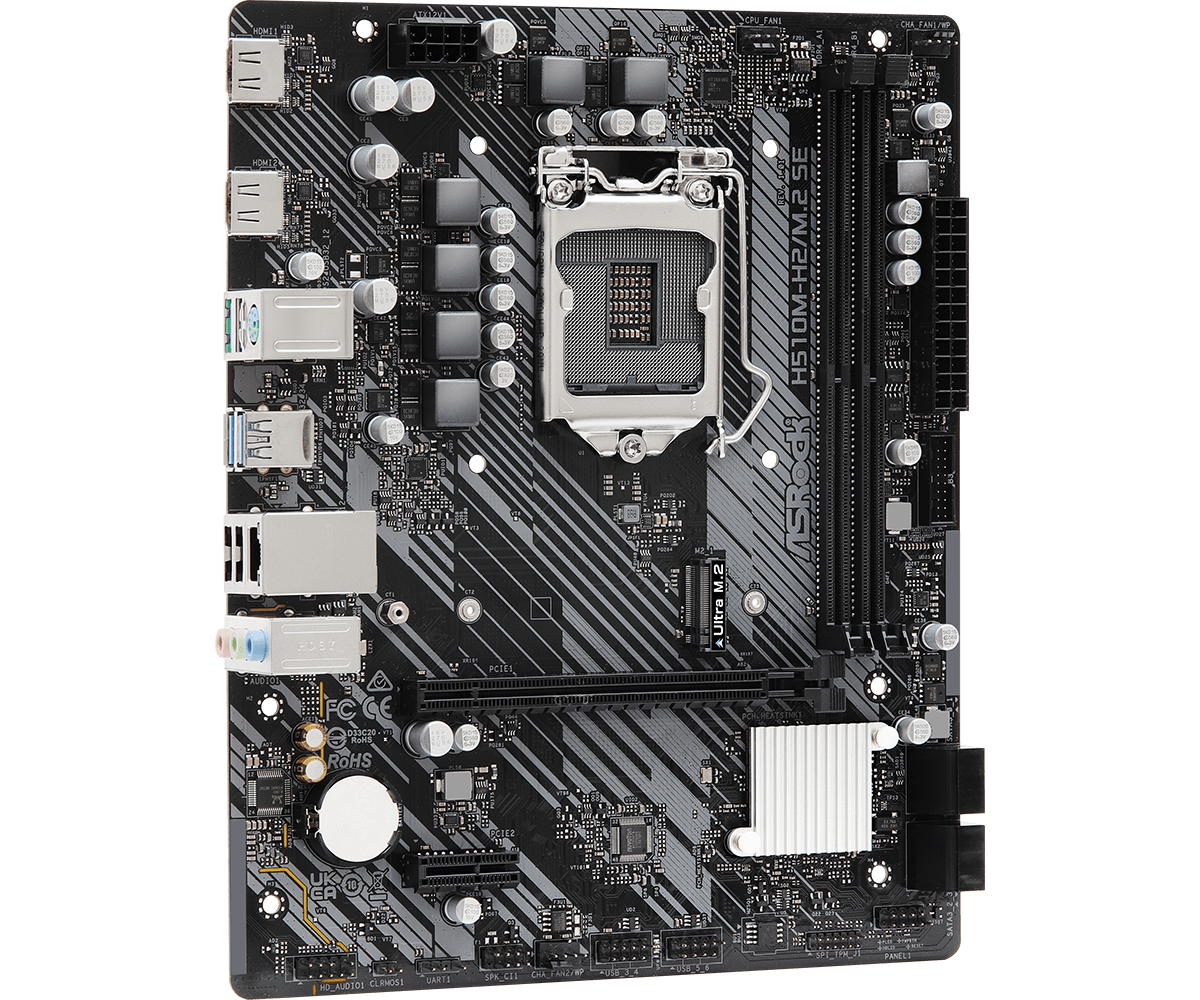

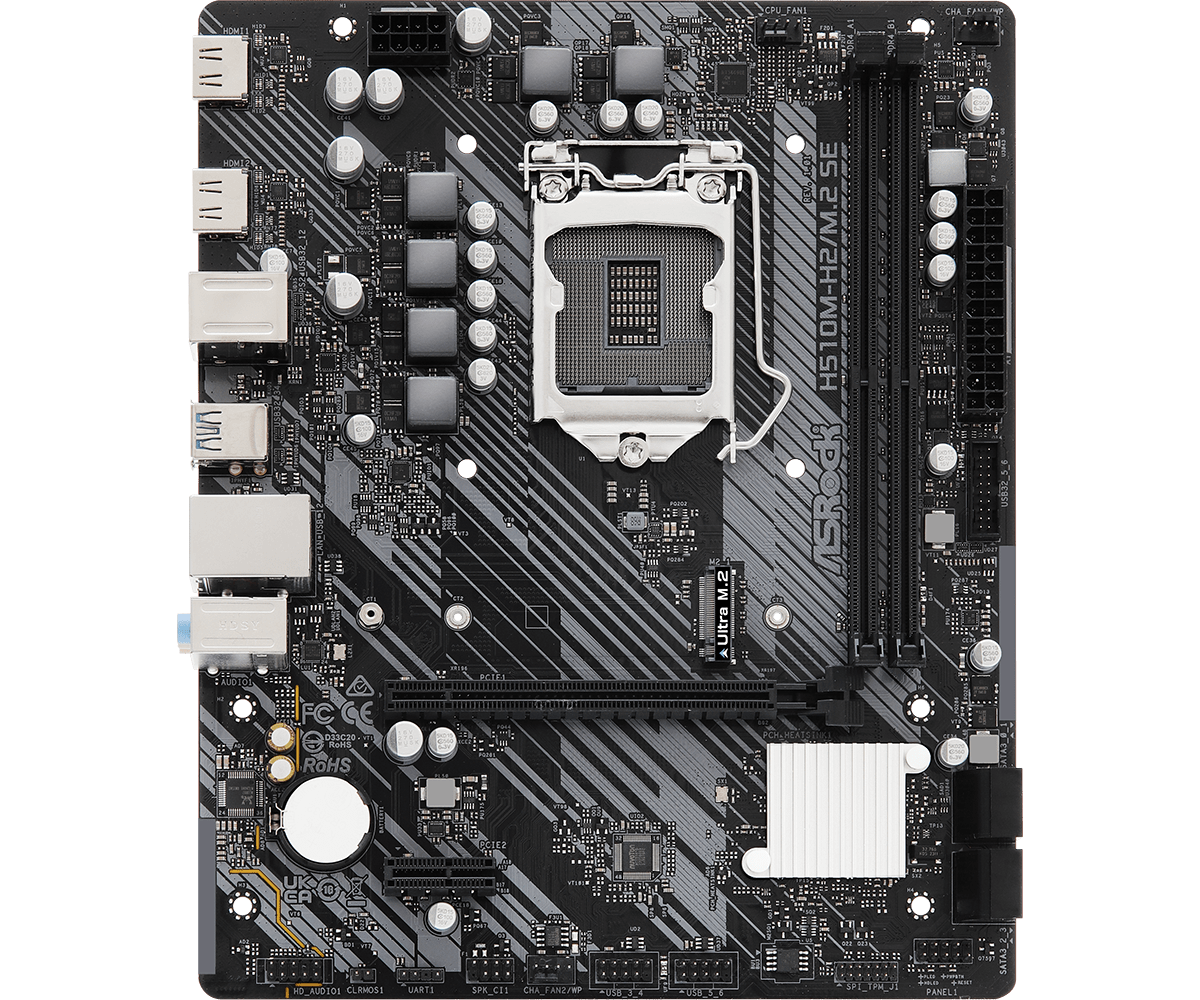

ASRock H510M-H2/M.2 SE Sockel 1200, 2xDDR4 2xHDMI / M.2, mATX
Bildergalerie überspringen
Abbildung kann vom Original abweichen
70,00 €
2x ab Lager lieferbar
Sofort verfügbar, Lieferzeit: 1-3 Tage
Produktnummer:
CD6024
Hersteller:
ASRock
EAN:
4710483944192
Hersteller-Nr.:
90-MXBMQ0-A0UAYZ
Verfügbarer Bestand:
2
Produktinformationen "ASRock H510M-H2/M.2 SE Sockel 1200, 2xDDR4 2xHDMI / M.2, mATX"
Details:
| Bezeichnung | ASRock H510M-H2/M.2 SE |
| Merkmale | - Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200) - 4 Power Phase Design - Supports DDR4 3200 MHz - Intel® H470 Chipset - 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 - Graphics Output Options: 2 HDMI - Realtek ALC897 7.1 CH HD Audio Codec - 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) - 6 USB 3.2 Gen1 (4 Rear, 2 Front), - 6 USB 2.0 (2 Rear, 4 Front) - Realtek Gigabit LAN - Supports ASRock Auto Driver Installer |
| Technische Daten | |
| Unique Feature | Rock-Solid Durability - 4 Power Phase EZ Update - ASRock Auto Driver Installer |
| CPU | - Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200) - Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | - Intel® H470 |
| Memory | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 64GB** - Supports Intel® Extreme Memory Profile (XMP) 2.0 - 15µ Gold Contact in DIMM Slots * 11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively. 10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively. **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - 2 x HDMI Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Graphics specifications may vary between CPU types. |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H |
| Slots | Intel® 11th Gen & 10th Gen Processors: - 1 x PCIe 4.0 x16 Slot (PCIE1)* Intel® H470 Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)** * Intel® 11th Gen Processors support PCIe 4.0 x16 Intel® 10th Gen Processors support PCIe 3.0 x16 ** Supports NVMe SSD as boot disks |
| Storage | Chipset: - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel® Optane™ Technology Supports NVMe SSD as boot disks |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | - 6 x USB 3.2 Gen1 (4 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection |
| Connector | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) *CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1~2/WP support the fan power up to 2A (24W). CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port - 2 x HDMI Ports - 2 x USB 2.0 Ports - 4 x USB 3.2 Gen1 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | |
| Software | - ASRock Motherboard Utility (A-Tuning) |
| UEFI | - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Accessories | - 1 x User Manual - 1 x I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
| Form Factor | - Micro ATX Form Factor: 23.1 cm x 18.7 cm |
| OS | - Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
