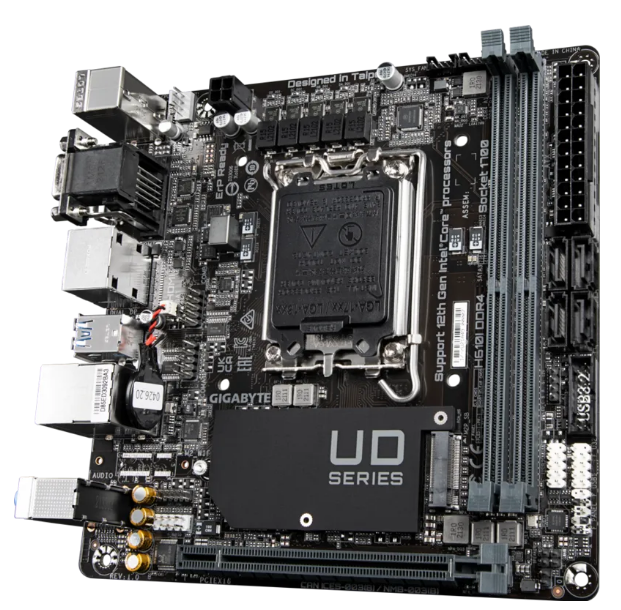

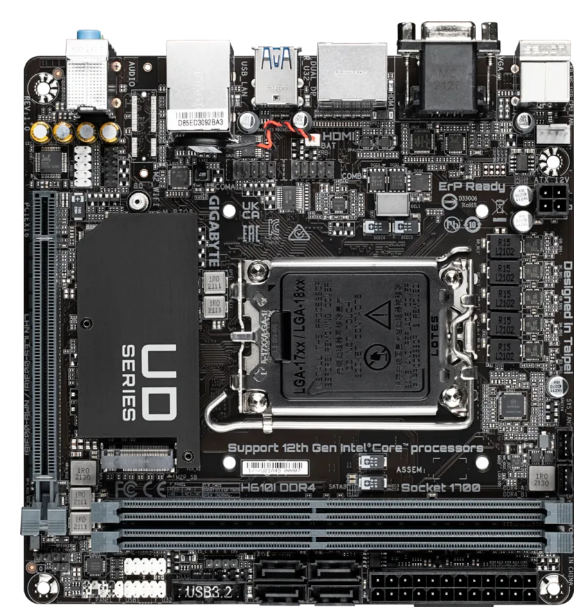

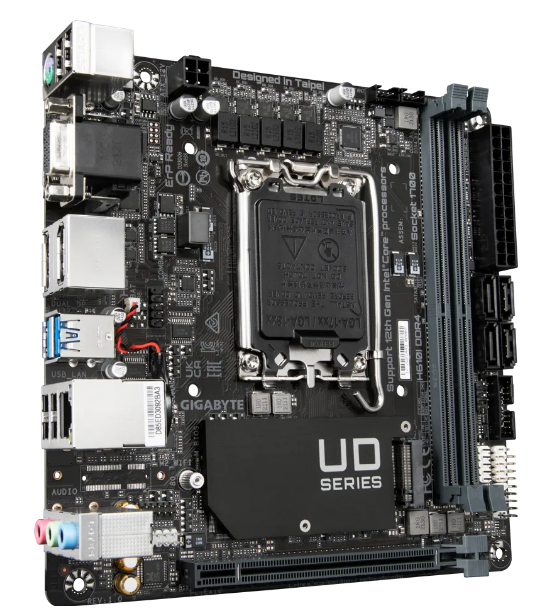

Gigabyte H610I-DDR4 Sockel 1700, 2xDDR4 HDMI / DP / 1xM.2, mini-ITX
Bildergalerie überspringen
Abbildung kann vom Original abweichen
Regulärer Preis:
110,00 €
1x ab Lager lieferbar
Sofort verfügbar, Lieferzeit: 1-3 Tage
Produktnummer:
CD7972
Hersteller:
Gigabyte
EAN:
4719331834562
Hersteller-Nr.:
H610I DDR4
Lagerbestand:
1
Verfügbarer Bestand:
1
Produktinformationen "Gigabyte H610I-DDR4 Sockel 1700, 2xDDR4 HDMI / DP / 1xM.2, mini-ITX"
| Bezeichnung | Gigabyte H610I-DDR4 |
| Beschreibung | Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2 , Intel® GbE with cFosSpeed, Anti-Sulfur Resistor, Smart Fan 6 |
| Merkmale | - Supports Intel® Core™ 14th/ 13th /12th processors - Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs - 4+1+1 Hybrid Digital VRM Design - Intel® GbE LAN with cFosSpeed Internet Accelerator Software - NVMe PCIe 3.0 x4 M.2 - High Quality Audio Capacitors and Audio Noise Guard - Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP - GIGABYTE APP Center, Simple and Easy Use - Anti-Sulfur Resistors Design |
| Technische Daten | |
| Prozessor | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU * Please refer to "CPU Support List" for more information. |
| Chipsatz | Intel® H610 Express Chipset |
| Arbeitsspeicher | Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Onboard Grafik | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version. (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. |
| LAN | Intel® GbE LAN chip (1 Gbps/100 Mbps) |
| Erweiterungssteckplätze | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) |
| Storage Interface | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| USB | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Interne I/O Anschlüsse | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x serial port headers 1 x Clear CMOS jumper 1 x chassis intrusion header |

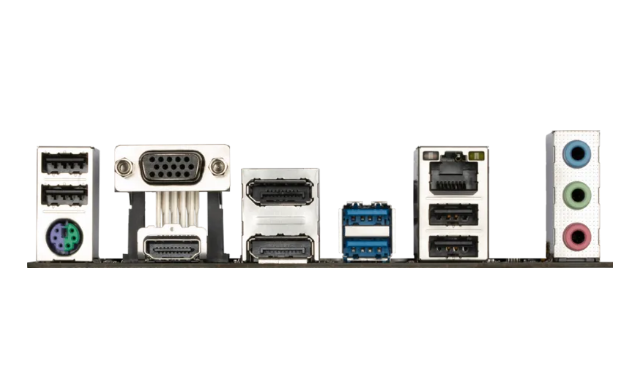

| Rückseite I/O Panel | 1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x D-Sub port 2 x DisplayPorts 1 x HDMI 2.0 port 1 x RJ-45 port 3 x audio jacks |
| I/O | iTE® I/O Controller Chip |
| H/W Überwachung | Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Einzigartige Funktionen | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Ambient LED Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Softwarebeigaben | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Betriebssystem | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Form Factor | Mini-ITX Form Factor; 17.0cm x 17.0cm |
