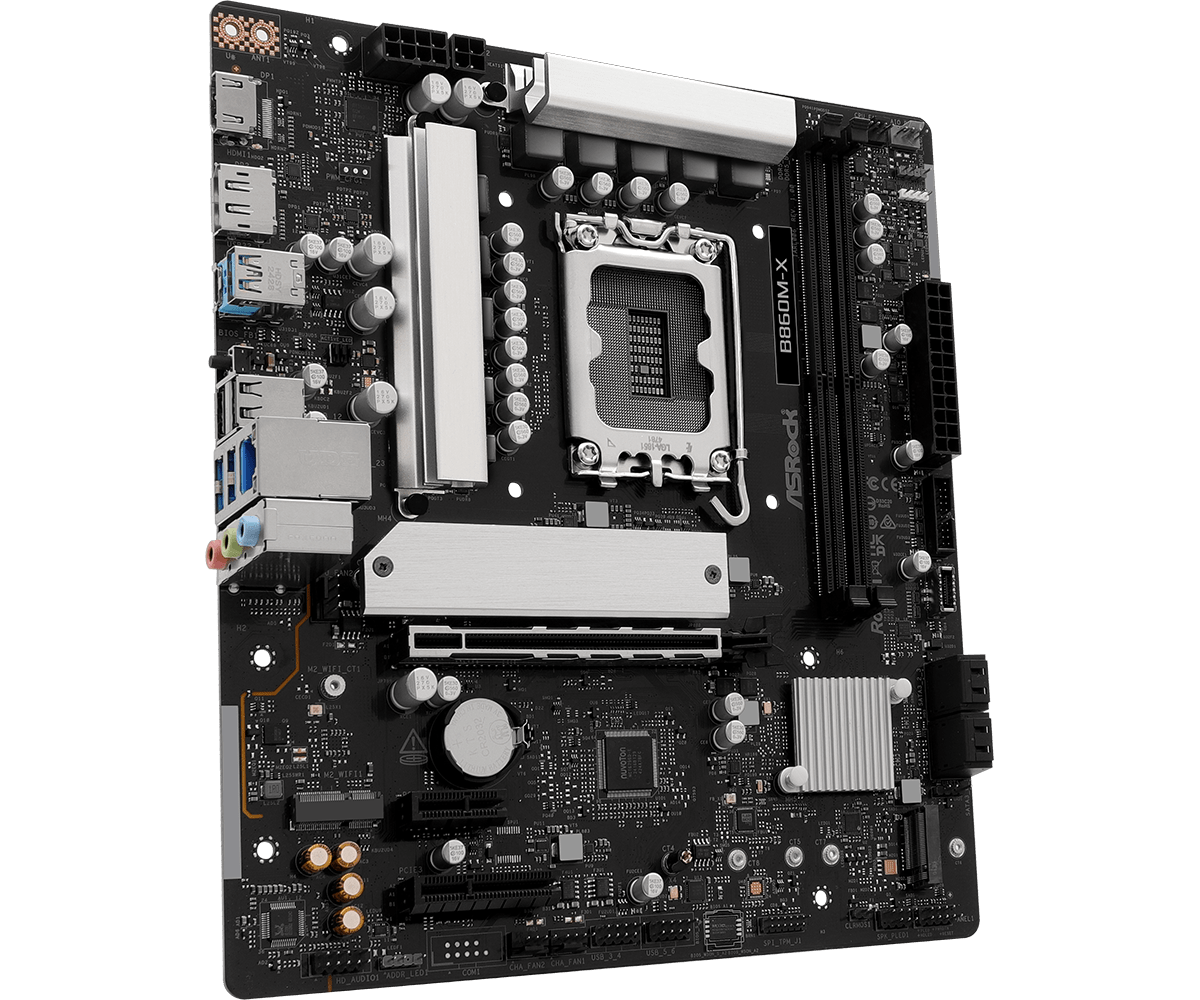

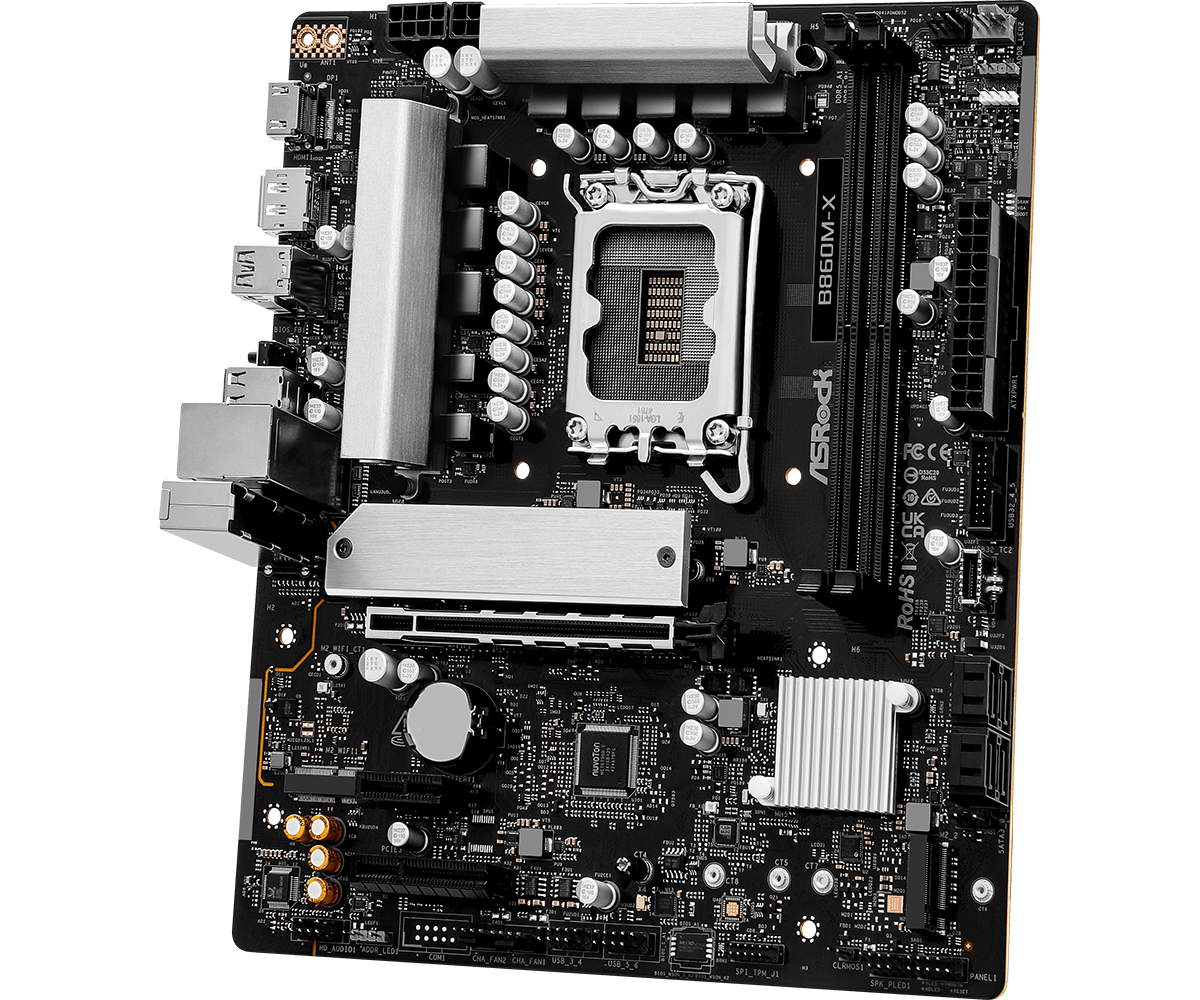

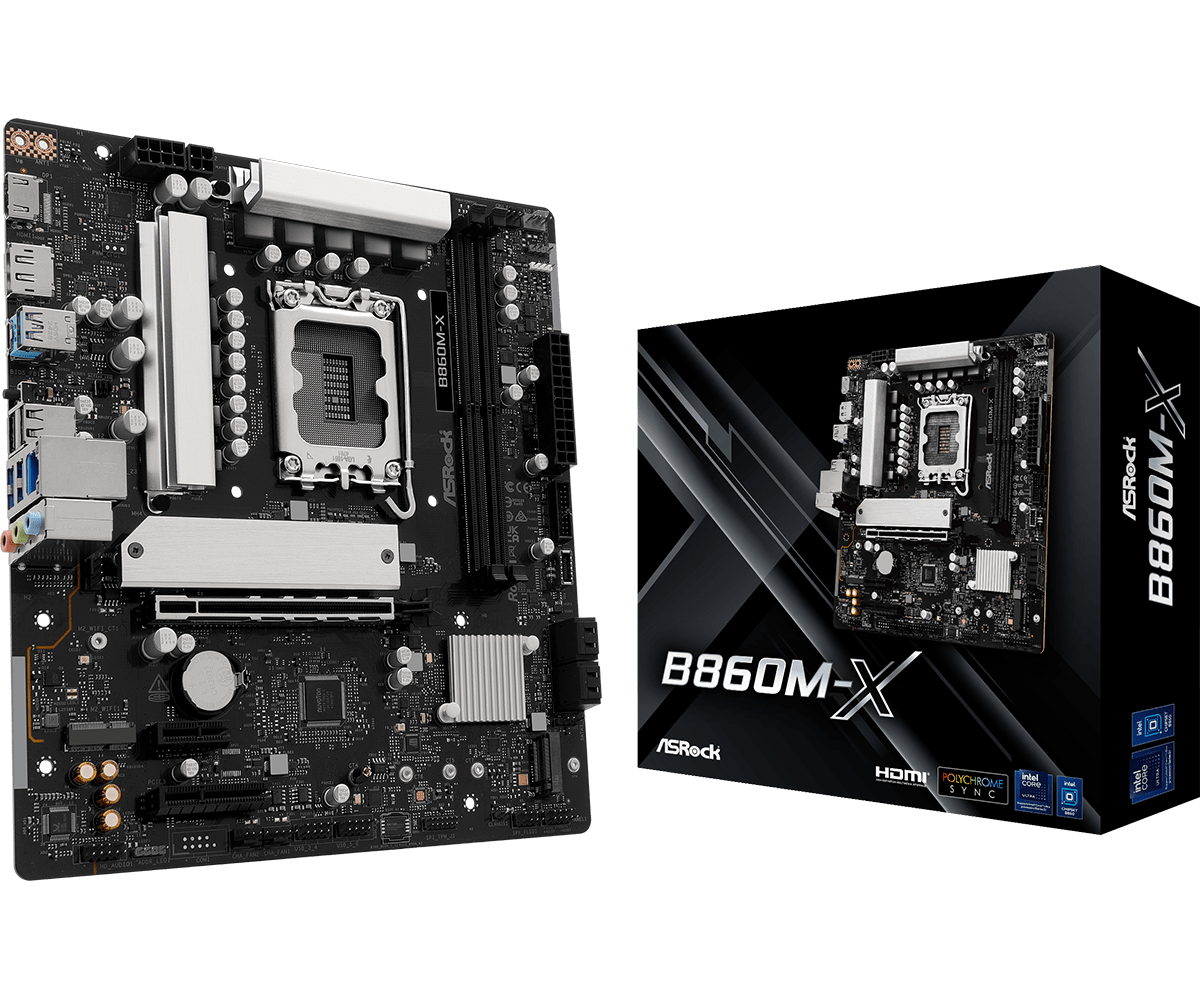

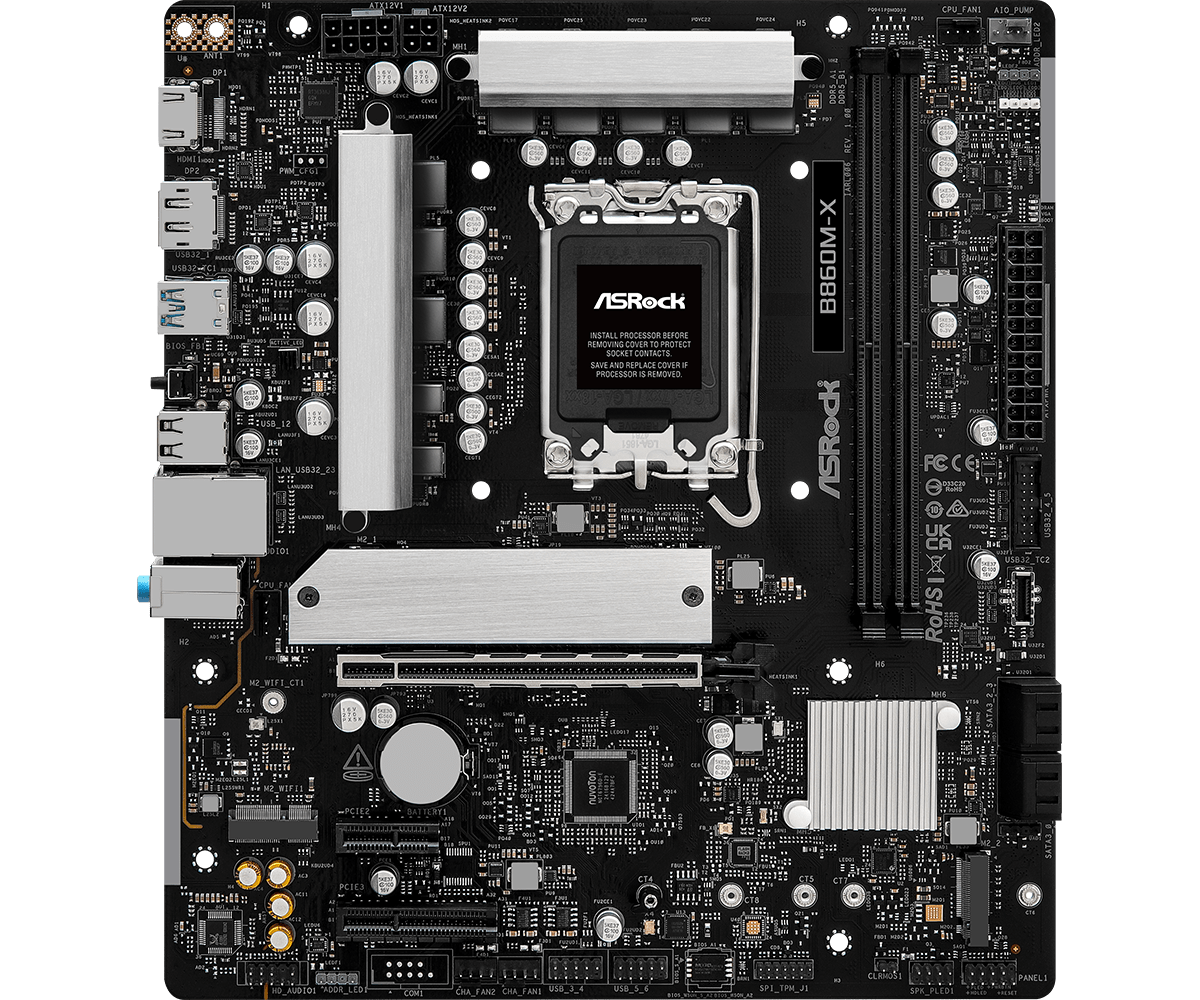

ASRock B860M-X Sockel 1851, 2xDDR5 2xM.2 / HDMI / DP / USB-C, µATX
Bildergalerie überspringen
Abbildung kann vom Original abweichen
115,00 €
3x ab Lager lieferbar
Sofort verfügbar, Lieferzeit: 1-3 Tage
Produktnummer:
CD5508
Hersteller:
ASRock
EAN:
4711581490406
Hersteller-Nr.:
90-MXBRX0-A0UAYZ
Verfügbarer Bestand:
3
Produktinformationen "ASRock B860M-X Sockel 1851, 2xDDR5 2xM.2 / HDMI / DP / USB-C, µATX"
Details:
| Bezeichnung | ASRock B860M-X |
| Technische Daten | |
| Einzigartige Features | Hervorragende Produktivität - PCIe Gen5 (M.2) - Dual Channel DDR5 Solide Haltbarkeit - 7+1+1+1+1 Power Phase Ultraschnelle Konnektivität - 2.5G LAN EZ-Update - BIOS Flashback Button - ASRock Auto-Treiber-Installer EZ Troubleshooter - ASRock Post Status Checker |
| CPU | - Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost-Technologie (ABT) - Integrierte NPU für dedizierte KI-Beschleunigung |
| Chipsatz | Intel® B860 |
| Arbeitsspeicher | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 9066+(OC)* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 128GB - Supports Intel® Extreme Speicherprofile (XMP) 3.0x *1DPC 1R Up to 9066+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively. |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Grafik | - Intel® Xe LPG Graphik-Architektur - 1 x HDMI 2.1 TMDS/FRL 8G Kompatibel, supports HDR, HDCP 2.3 and max. Auflösung up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (Komprimiert), supports HDCP 2.3 and max. Auflösung up to 8K 60Hz / 5K 120Hz *Intel® UHD Graphics Built-in Visuals und die VGA-Ausgänge können nur bei der Verwendung von CPUs mit integrierter GPU-Einheit genutzt werden. |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Steckplätze | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) *Unterstützt NVMe-SSD als Boot-Festplatte |
| Speicherplatz | CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/ 2242/ 2260/ 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors *Unterstützt Intel® Volume Management Device (VMD) Unterstützt NVMe-SSD als Boot-Festplatte |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA Speichergeräte |
| USB | CPU: - 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) *All USB ports support ESD Protection |
| Anschluss | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 2 x Addressable LED Headers** - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*** - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header *Unterstützt insgesamt bis zu 12V/3A, 36W-LED-Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~2 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~2 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use. |

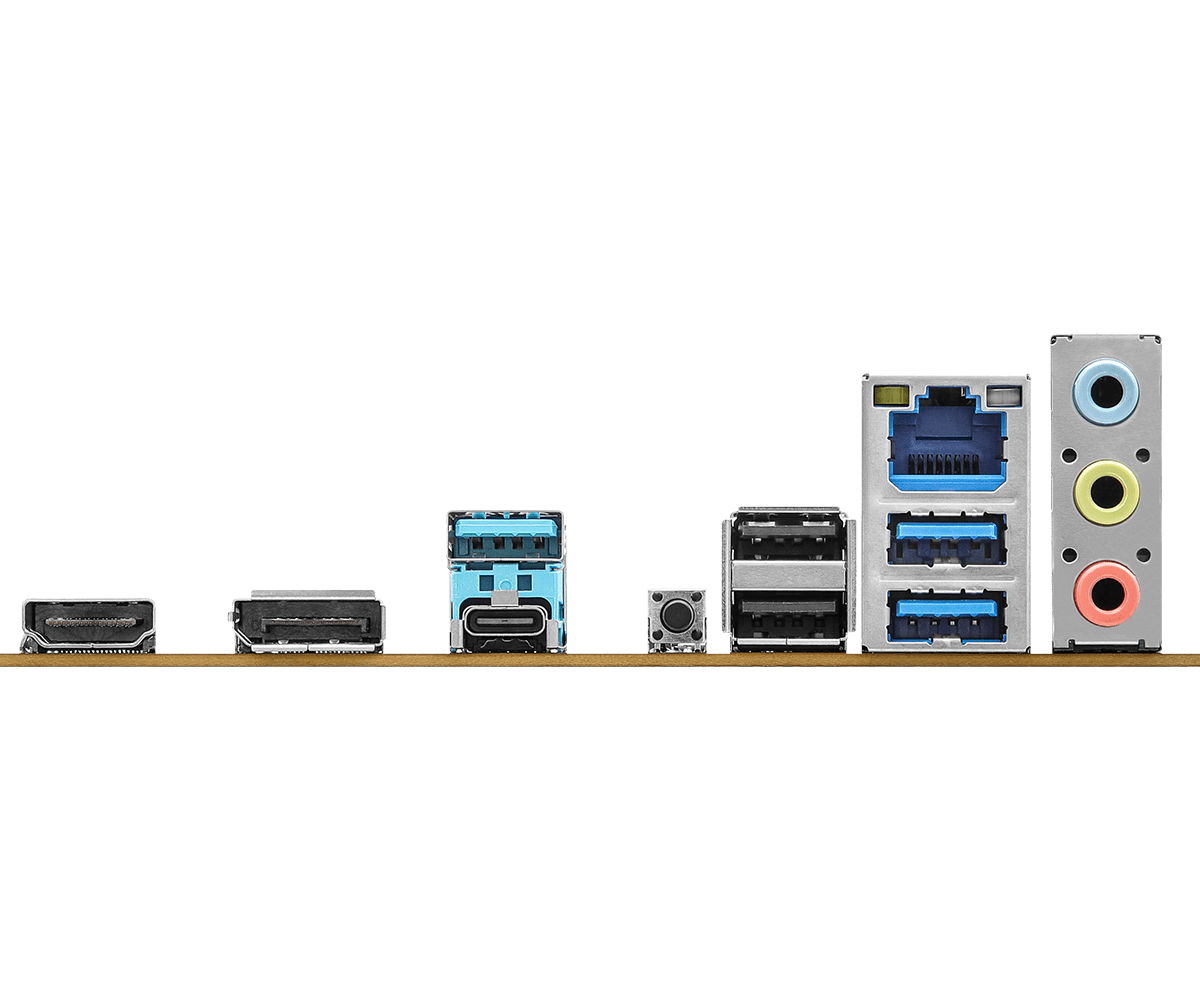

| Blende | - 2 x Antennenmontagepunkte - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 3 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software und UEFI | |
| Software | - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* |
| UEFI | - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto-Treiber-Installer - ASRock Sofort-Flash *Diese Tools können im Live Update & APP Shop heruntergeladen werden. |
| Produktzubehör//- 1 x I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket | |
| Formfaktor//- Micro ATX Form Factor: 24.4 cm x 21.8 cm | |
| Betriebssystem | Microsoft® Windows® 11 64-bit |
| Zertifizierungen | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
