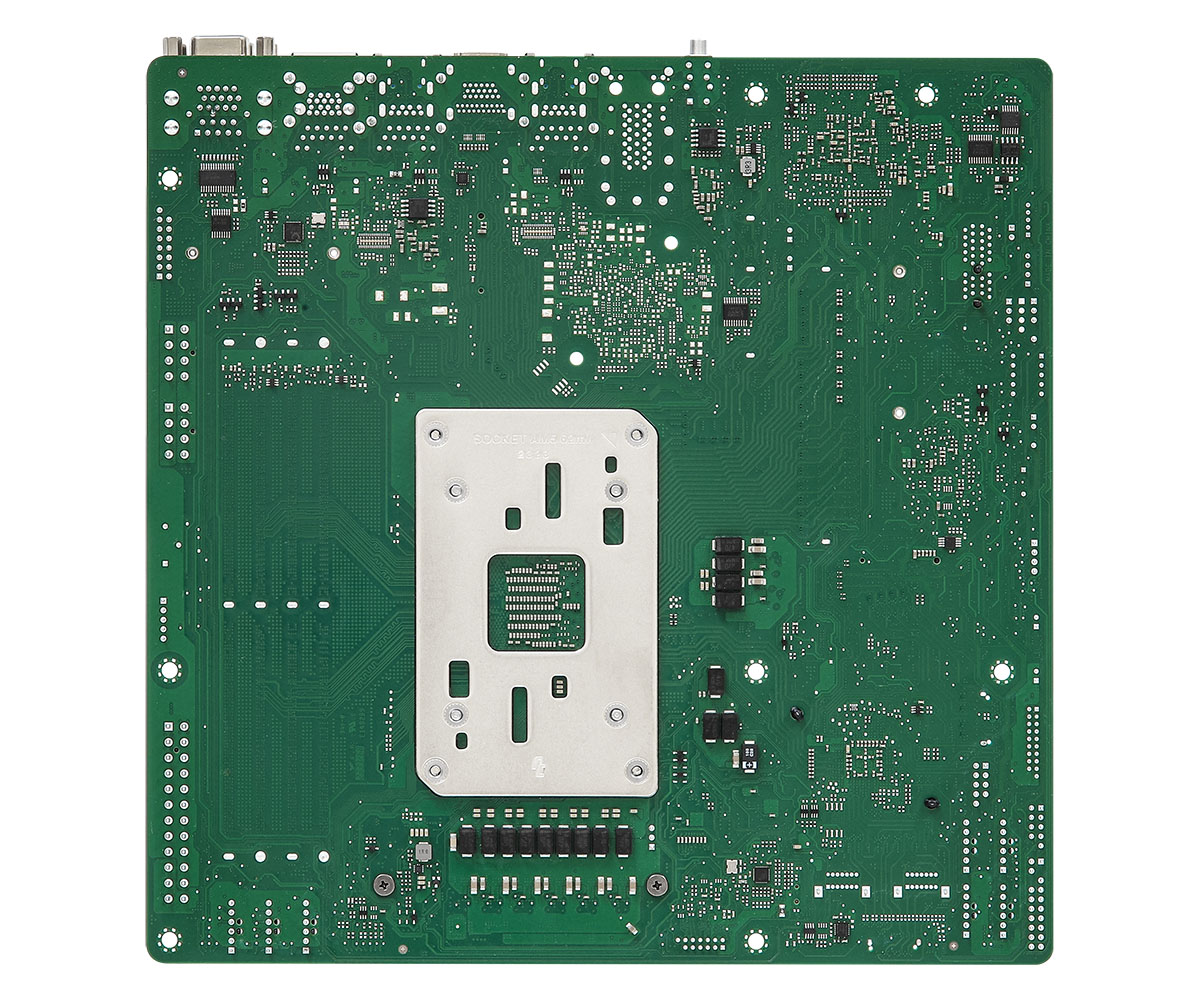

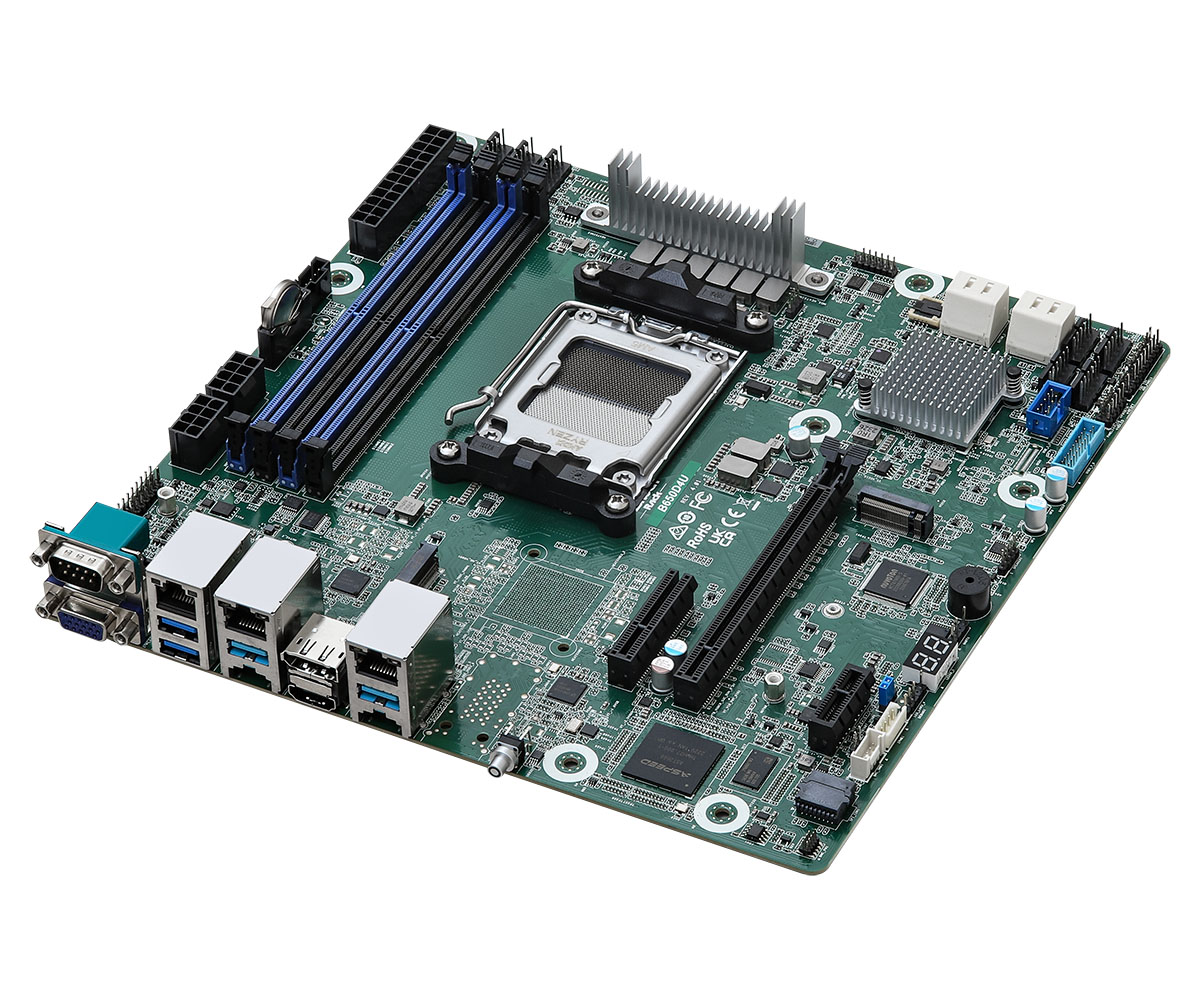

ASRock B650D4U Server/Workstation Sockel AM5 Single 4x DDR5 / 2x RJ45 / 4x SATA HDMI / DP, mATX
Bildergalerie überspringen
Abbildung kann vom Original abweichen
Regulärer Preis:
380,00 €
1x ab Lager lieferbar
Sofort verfügbar, Lieferzeit: 1-3 Tage
Produktnummer:
CD4599
Hersteller:
ASRock
EAN:
4711430520988
Hersteller-Nr.:
B650D4U
Lagerbestand:
1
Verfügbarer Bestand:
1
Produktinformationen "ASRock B650D4U Server/Workstation Sockel AM5 Single 4x DDR5 / 2x RJ45 / 4x SATA HDMI / DP, mATX"
| Bezeichnung | ASRock B650D4U |
| Merkmale | - Micro-ATX (9.6"x 9.6") - Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors - 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM - 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1 - Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4) - 2 RJ45 (1GbE) by Intel® i210 - 4 SATA 6Gb/s - 1 HDMI, 1 DisplayPort - Remote management (IPMI) |
| Technische Daten | |
| Processor System | |
| CPU | Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/ 8000/ 7000 Series Processors |
| Socket | Single Socket AM5 (LGA 1718) |
| Thermal Design Power | Up to 170W by proper cooling solution |
| Chipset | AMD B650E |
| System Memory | |
| Supported DIMM Quantity | 4 DIMM slots (2DPC) |
| Supported Type | DDR5 288-pin ECC/non-ECC UDIMM |
| Max. Capacity per DIMM//48GB | |
| Max. DIMM Frequency | 5600 MHz (1DPC); 3600 MHz (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT6: PCIe5.0 x16 [CPU] |
| PCIe x 4 | SLOT7: PCIe5.0 x4 [CPU] |
| PCIe x 1 | SLOT4: PCIe4.0 x1 [FCH] |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU] 1 M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH] |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD B650E (4 SATA 6Gb/s):4 SATA 7-pin |
| Ethernet | |
| Additional Ethernet Controller | Intel® i210: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| Dedicated IPMI LAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA), 1 (15-pin) header AMD Processors with Graphics: 1 HDMI, 1 DisplayPort |

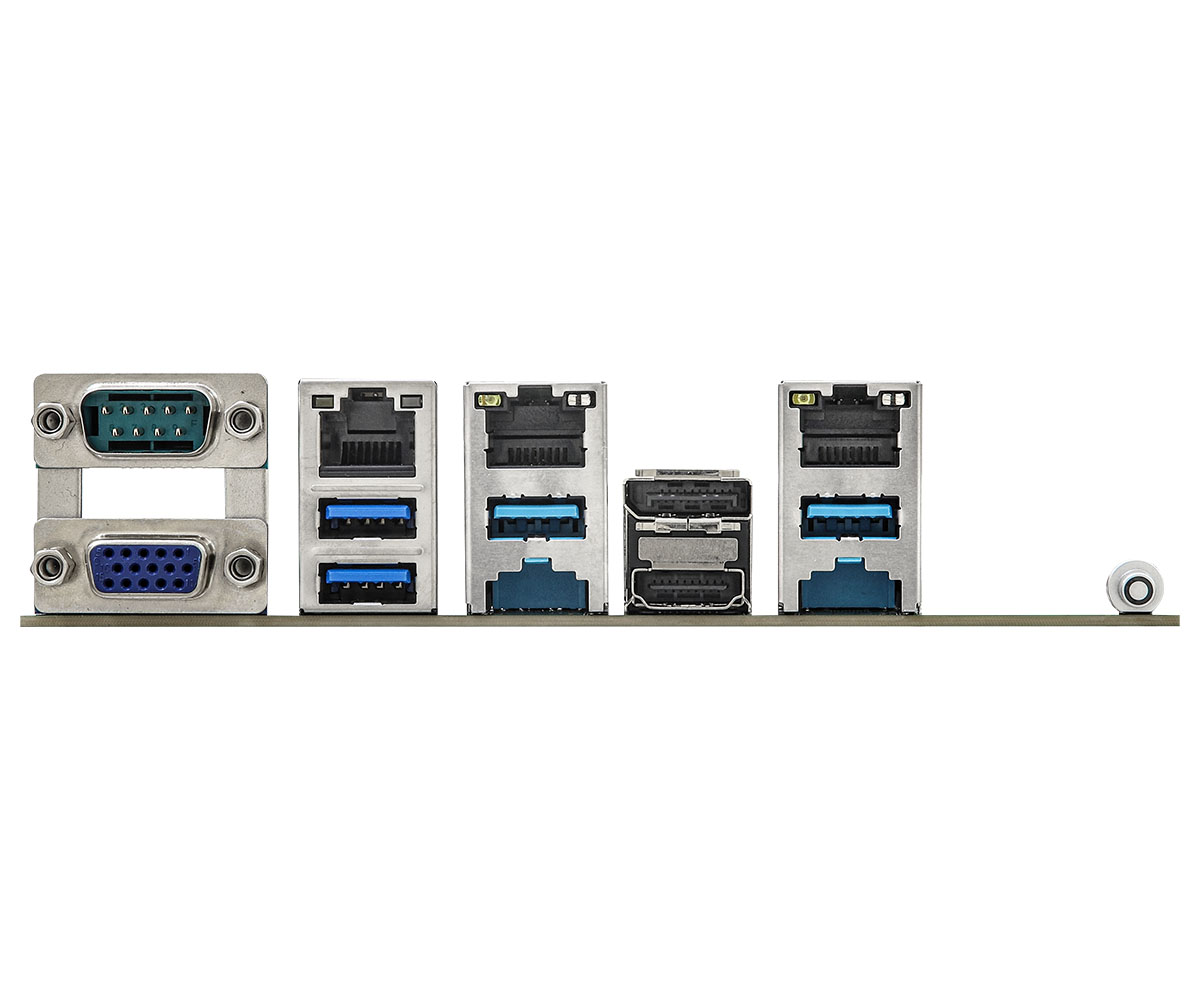

| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| Video Port | 1 DB15 (VGA), 1 DisplayPort, 1 HDMI |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 4 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN activity LED |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| VGA header | 1 |
| Speaker Header | 1 |
| Buzzer | 1 |
| Fan Header | 7 (6-pin) |
| TPM Header | 1 (13-pin, SPI) |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 |
| Others | 1 (3-pin, 80 debug port header) |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| USB 2.0 Header | 1 (9-pin, 2 USB2.0) |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 7 |
| BMC Heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5 |
| Hardware Monitor | |
| Temperature | CPU, DDR, MB, Card Side, Chipset, M.2 slot |
| Fan | Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) |
| Voltage | VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V |
| Supported OS | |
| OS | AMD Ryzen CPUs: Microsoft® Windows: - Windows® 10 (64 bit) - Windows® 11 (64 bit) Linux: - Red Hat Enterprise Linux Server 8.7 (64bit) - SUSE SLES 15.2 (64 bit) / 15.4 (64 bit) - Ubuntu 21.04 (64 bit) / 21.10 (64 bit) / 22.04.1 (64 bit) Hypervisor: - VMWare® ESXi 7.0 U3g / 8.0 AMD EPYC 4004 CPUs: Microsoft® Windows: - Windows® Server2022 (64 bit) * Note: Please change the BIOS setting: Advanced > Chipset Configuration > Server WHQL Support [Enabled]. Set this option to [Enabled] to ensure the best compatibility with Windows® Server environments. Linux: - Red Hat Enterprise Linux Server 9.3 (64bit) / 9.4 (64bit) - SUSE SLES 15.5(64 bit) - Ubuntu 20.04.6 (64 bit) / 22.04.4 (64 bit) Hypervisor: - VMWare® ESXi 7.0 U3g / 8.0U2b AMD EPYC 4005 CPUs: Microsoft® Windows: - Windows® Server2022 (64 bit) - Windows® Server2025 (64 bit) * Note: Please change the BIOS setting: Advanced > Chipset Configuration > Server WHQL Support [Enabled]. Set this option to [Enabled] to ensure the best compatibility with Windows® Server environments. Linux: - Red Hat Enterprise Linux Server 9.4 ( 64 bit) / 10.0 (64bit) - SUSE SLES 15.6(64 bit) - Ubuntu 22.04.5 (64 bit) / 24.04.2 (64 bit) * Supports UEFI BOOT only * The Linux system doesn't support RAID Mode |
| Environment | |
| Temperature | Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C |
| Humidity | Non-operating humidity: 20% ~ 90% (non-condensing) |
